Proveno 150:gross vol. 169 l, net vol. 150 l, boiling space 19 l

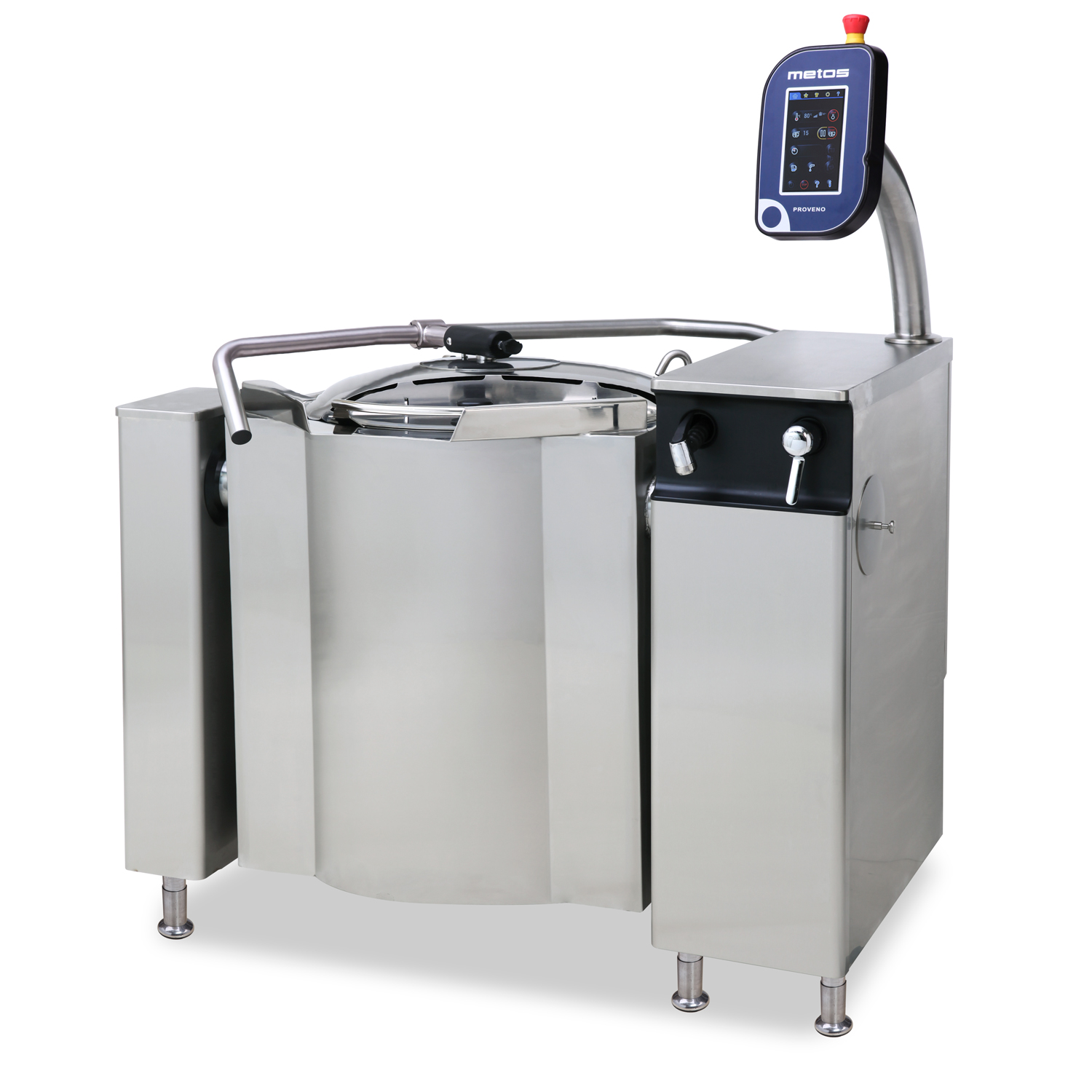

Metos Proveno is a Finnish-made smart mixing combi-kettle. Reliable
automation ensures routine food production without constant care or
monitoring. Programming and management of recipes is easier than ever
with the help of time-saving audio-visual communications features. Metos
Proveno can be customised according to the user needs with the help of
the respective features and accessories. Optimal ergonomics, ease of use
and effortless cleaning make the hygienic and energy-saving Metos
Proveno a user-friendly and economical option.
Both fixed and free-standing (optional) installation is possible.
The control panel of the Metos Proveno is fully raised with a highly
visible and easy-to-read digital interface which is protected from
knocks as well as steam rising from the kettle. All parts that become
dirty in everyday use such as, for example, mixers and scrapers, are
easily removable without any special tools and are dishwasher-safe. The
sturdy stainless-steel lid has a Safety Grid Lid to facilitate adding of
raw ingredients. Room for chef´s tools is available on the control
pillar top.
An automatically filled steam jacket means that the steam kettle is
filled with water independently. It is possible to group Metos Proveno
4G combi-kettles by connecting them to other Metos 4G kettles and fixed
Proveno 2G and 3G kettles without an intermediate support pillar between
the kettles. The tilting height from the pouring spout to the floor is
600 mm. An elevated installation frame is available and can be
customised to the desired tilting height.
DELIVERY INCLUDES:
– a powerful stainless-steel mixing tool for all mixing, fitted with
detachable and easy to clean scrapers – Heavy Duty mixing tool – a
standard feature in 300 and 400 l combi-kettles
– a quick release stainless steel lid with a safety grid. Dishwasher
safe. The rotating mechanism in the lid enables washing the lid even in
the upright position while fixed to the kettle.
– stainless steel measuring stick, which is also dishwasher safe
– support pillar
– accessory hook
OPTIONS (ordered together with the Proveno 4G combi-kettle)
– electronic or direct steam operated model
– hand shower with three options: S1 standard, Heavy Duty S2 or Reel -in
Hand shower S3
– kettle sensor for wireless HACCP – Metos IoLiving
– automatic cooling C2, C3i or C5i; please see further details below
– drainage with pressurised air for C3iPA or C5iPA cooling
– draw off taps and valves D1 and D2
– double water connection; please see further details below
– foot switch, enabling mixing while tilting
– socket outlet (230V 10A) behind the control panel
– powerful high-performance heating element for 150 to 300 l kettles
(requires a higher amperage inlet fuse)
– alternative voltages
– welded and seamless bowl cover is available for increased hygiene. Due
to the fully welded outer surface, the whole device is urethane
insulated ensuring excellent energy efficiency.
INSTALLATION OPTIONS
– fixed installation: with a sub-surface installation frame
– fixed installation: with a surface installation frame
– elevated installation frames are available for fixed installation
– free standing installation: frame and feet
– free standing, midfloor kit 1
– free standing, midfloor kit 2
– group installation accessories are available for all options above
– it is possible to fix a free-standing combi-kettle to the floor with
installation flanges which do not penetrate into the floor surface.
Installation flanges do not prevent moving of the kettle as necessary.
ACCESSORIES
– wireless IoLiving HACCP
– multi mixing tool with IoLiving sensor
– strainer plate
– strainer plate extension for 300 to 400 l kettles
– pouring adapter (spout reducer)
– whipping grid
– cleaning tool
– Heavy Duty Mixing tool for 150 to 200 l kettles
– blender lid kit Proveno 4G (40 to 100 l kettles)
– wide range of accessories for various cooking purposes
MATERIALS
The kettle is made entirely of stainless steel with inner surface of
acid resistant stainless steel. Protection class: IPX5
CONTROL PANEL
– a large control panel is fully raised from the control pillar of the
kettle and equipped with a touch screen
– the screen is protected from knocks as well as steam rising from the
kettle
– informative and simple touch screen with various symbols and language
options
– only available functions are active in the menu
– adjustable audio-visual signals
– info and error pop-up messages
– service diagnostics are available on the display
– clear and highly visible non-reflecting status display
– current status related user instructions are available on the touch
screen
– IP68 protected USB connection in the back of the panel
– software updates via USB
– programs are saved and downloaded via USB
– HACCP data is saved via USB
– various user levels, for example, making changes in the programming
requires logging in
– extensive kettle settings database which is managed by users
– demo mode for new users
– comprehensive demo application is available
– users may alter mixing patterns and create new programmes
– energy saving mode for touch screen
– emergency stop function
TIMER
– possibility to set several timers
– timed starting function (day/month/week)
– timed STOP-function
– Cook&Hold for maintaining desired temperatures
– egg timer
– timed heating
– timed mixing
– timed mixing patterns
– timed first water drainage
– timed adding of water
PROGRAMMING
– programming is as standard feature
– tested ready-to-use standard recipes and kettle cleaning programs
– programming, modifying and saving functions are available on the touch
screen
– unlimited number of programs and program phases
– favourite pages for most popular programs
– HACCP set points and alarms
– timed starting function (day/month/week)
– new and customised mixing patterns also for kettle washing
CLEANING
Ready-to-use cleaning programs and possibility to save an unlimited
number of customised cleaning programs. Washing tool is attached to the
mixer. The chosen cleaning program doses an optimal amount of water,
heats up the water and starts the mixer. Signal indicates the end of a
program. Programs may be customised and copied for various washing
needs.
SMART HEATING FUNCTION
ProTemp real-time temperature control allows setting food temperature,
kettle jacket temperature, or their difference (Delta-T) on the basis of
actual real-time temperatures to prevent the food from burning. Display
for food and jacket real-time temperatures. Smart power setting enables
sensitive cooking as well as cooking on full power. Delta-T cooking, low
temperature cooking, sous vide, proving and tempering – with Proveno
everything is possible. Temperature setting range of 0°C… 120°C with 1°C
setting accuracy. Maximum operating pressure of 1.0 bar corresponds to
+120°C on the inside surface of the kettle. Optimal use of energy in
all functions.
WATER AUTOMATIC, FOOD WATER FILLING
Automatic food water filling is a standard feature. Water is added via
touch screen icons by choosing to open or close the tap, or by setting
the amount of water to be added. Memory for added cooking water. Adding
of cooking water may be adjusted by parameters with 100 ml intervals.
Ideally located water-spout on the edge of the kettle enables filling of
the kettle with water even when the kettle is being tilted, or with low
water pressure. The possibility to add water when the kettle is being
tilted is extremely useful, for example, when cooking or rinsing pasta.
MIXER
Two directional mixing tool with an automatic reversing function
provides thorough mixing at low speeds without Braking the product.
Variable mixing speed for all kettle sizes is 15 to 140 rpm. Power
mixing option is activated by touching and holding the respective icon,
for example, for adding raw ingredients or spices. Mixing in a tilted
position is enabled by touching and holding the icon when the kettle is
being tilted. Pedal for mixing during tilting (optional) enables passing
of the manually hand activated mixing during tilting. The pedal has two
automated emergency stops.
The kettle has nine ready-to-use fully automatic mixing programs
designed and tested by food-service professionals for healthy and
versatile diets. You can also create and save your own mixing programs,
for example, for Cold cooking, Hot-Fill and Cook Chilli cooking.
Standard mixing programs for this kettle:
– crumbling
– whipping
– mashing
– gentle stirring, for soups
– sautéing meat or vegetables and powerful back and forth mixing
– mashed potatoes and efficient back and forth mixing
– desserts
– porridges
– doughs
The mixer stops when the lid is opened. Mixing significantly decreases
the time spent on heating and cooling which in turn helps to save
energy.
TILTING
Efficient and long-lasting electric tilting for 40 to 150 l kettles, and
hydraulic tilting mechanism for 200 to 400 l kettles. According to
occupational safety standards, tilting of the kettle is enabled only
when touching and holding the respective icon on the screen. Auto
Tilt-back function stops the product flow from the kettle (may be
adjusted with the respective settings) and makes working easier when
filling containers. Additionally, this function increases safety when
pouring hot product from the kettle. Ergonomic tilting height of the
pouring spout is 600 mm from the floor enabling easier cleaning and
emptying to bigger transport containers. An elevated installation frame
is available for this kettle and can be customised according to the
desired tilting height (optional).
AUTOMATED MONITORING
Integrated automatic monitoring. Automated monitoring data is saved on
USB flash drive, or alternatively the kettle may be connected to, for
example, the wireless Metos IoLiving system.
MEASURING OF ENERGY CONSUMPTION
Electric kettles are equipped with energy consumption measuring, and the
results are available on the display. The data is also sav
